MyControl

MyControl is a program that reads G-code, interprets it, and generates the necessary changes to be sent to a machine. Through communication protocols such as OPC or Modbus, we connect to PLCs to send and receive information, and generate changes in variables for proper operation.

Some screens

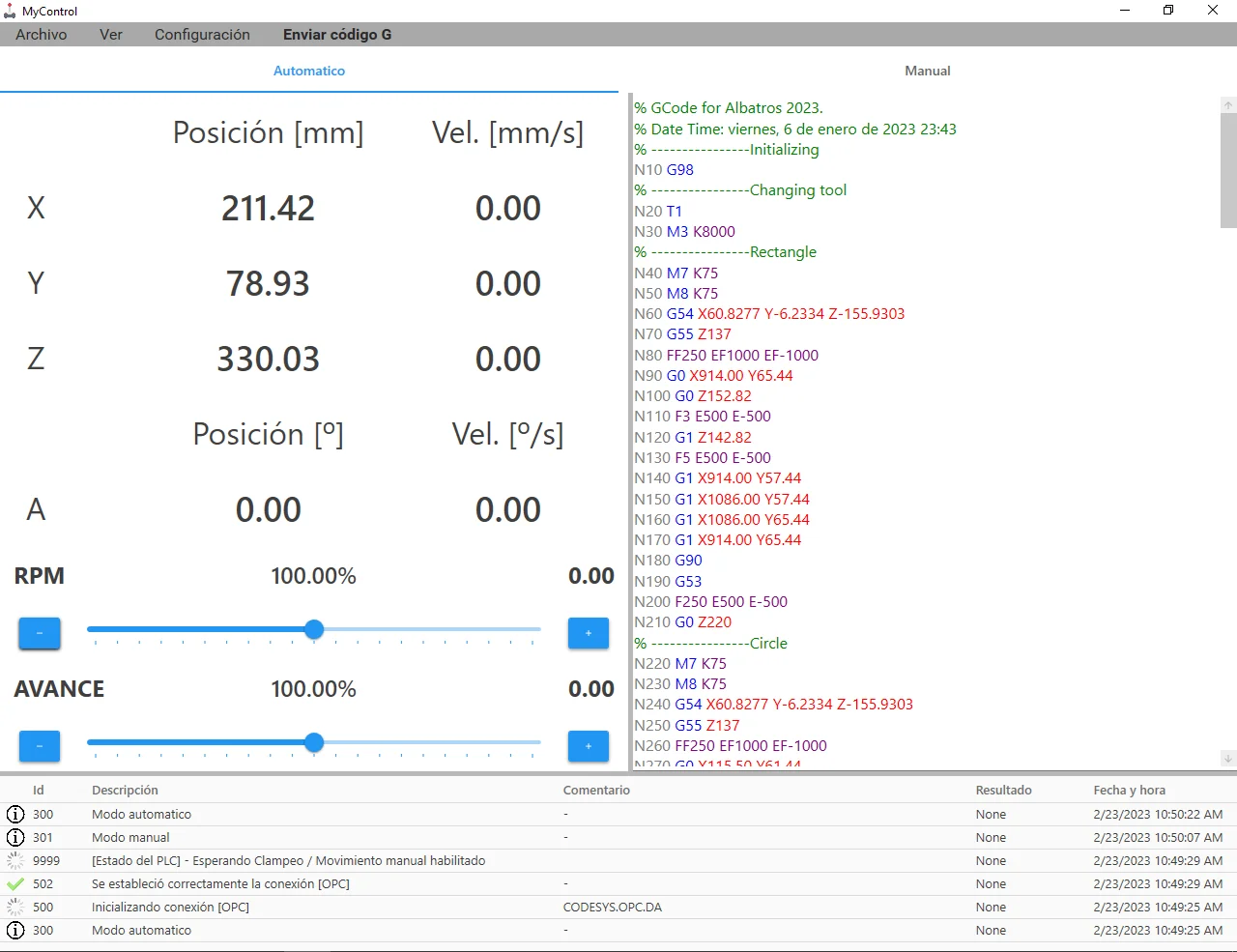

Automatic

On this screen, you can see the G-code read by the program. You can also view the current positions and speeds of the axes, and change the feedrate and rpm as percentages.

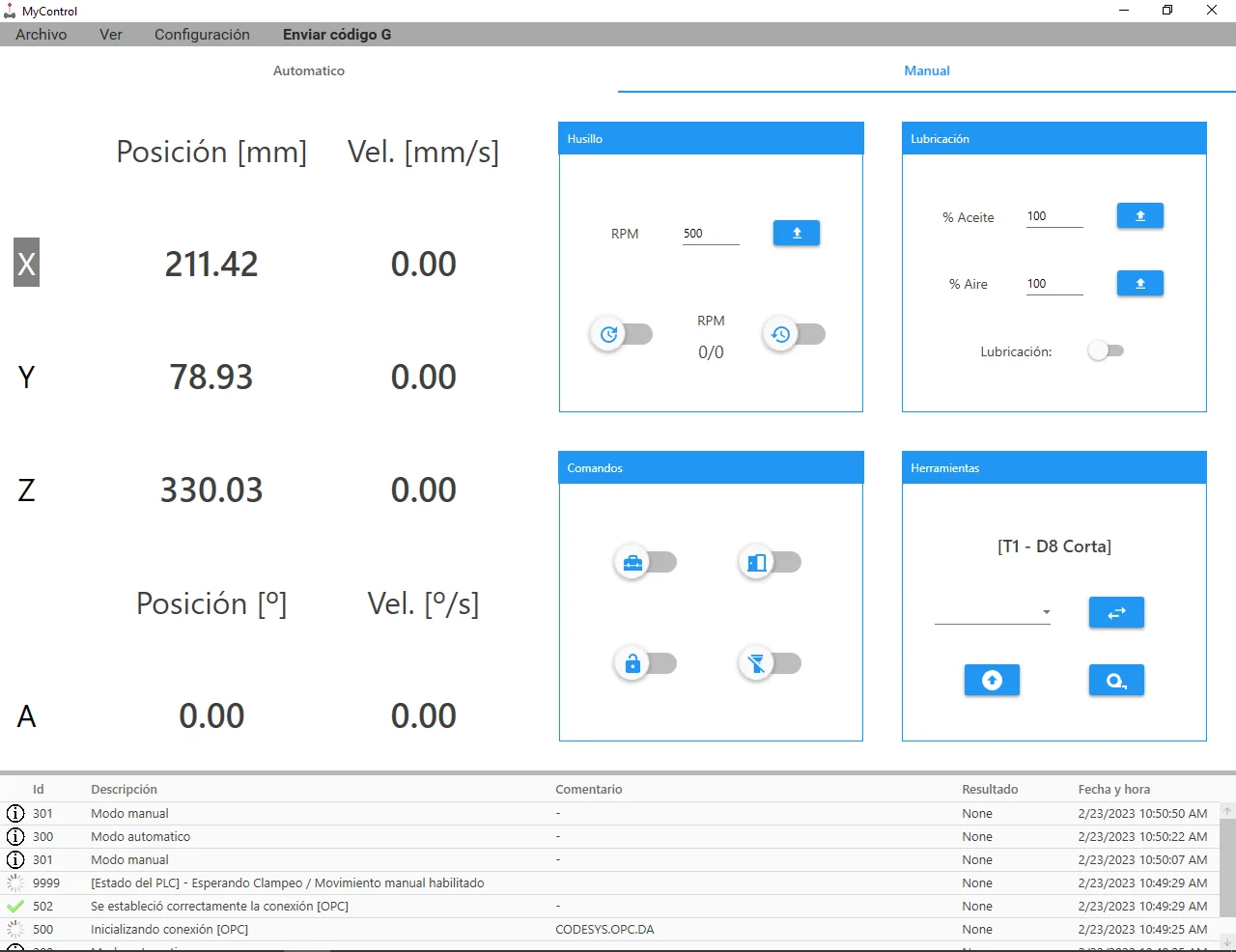

Manual

Like the automatic screen, it lets you view the current positions and speeds of the axes. It also lets you execute movements and actions commanded by the operator, such as opening the tool drawer, turning on a light, changing a tool, or starting the spindle.

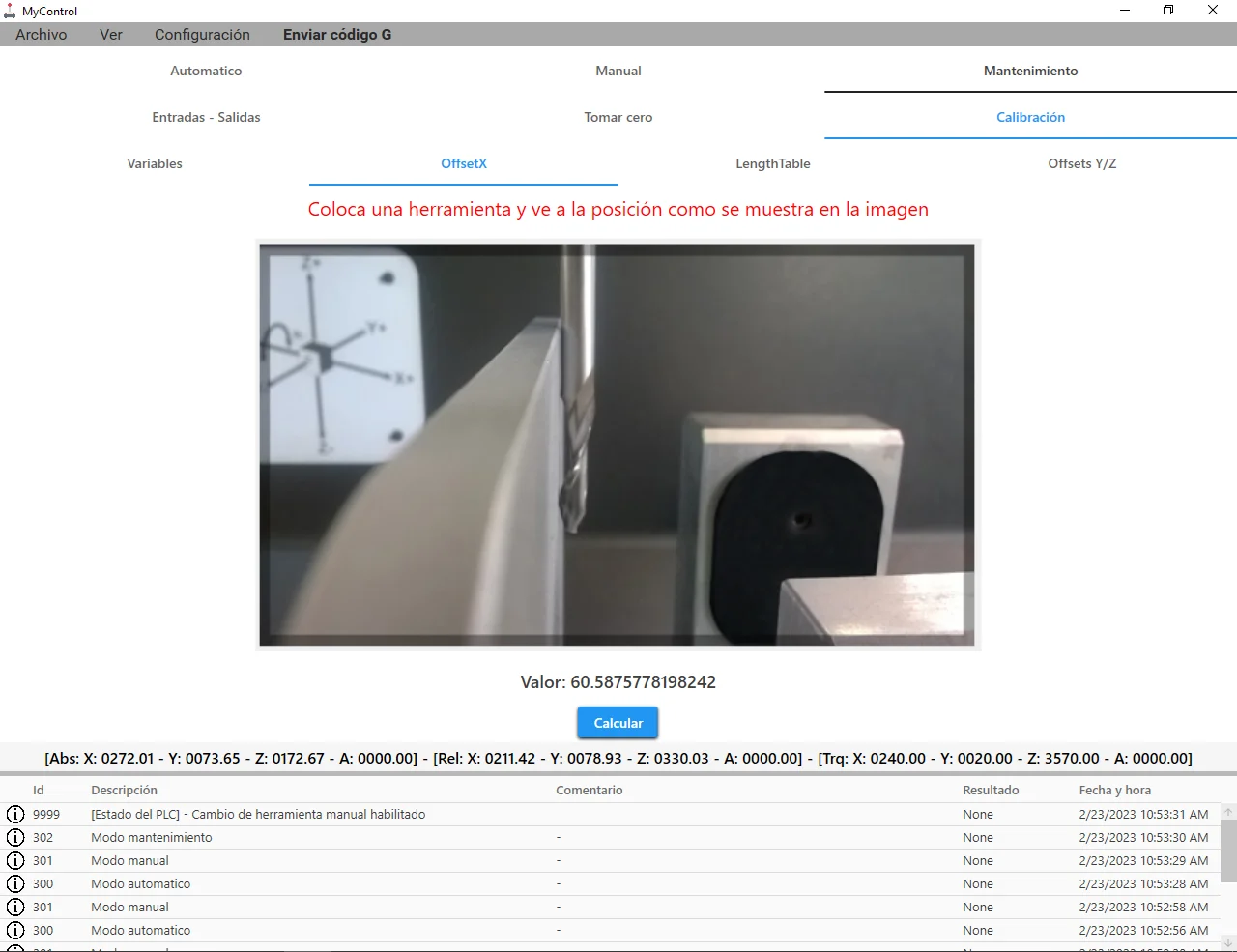

Calibration

We facilitate machine calibration with images, accompanied by explanations, that indicate where to move certain axes so the program can calculate the parameters from the current position.

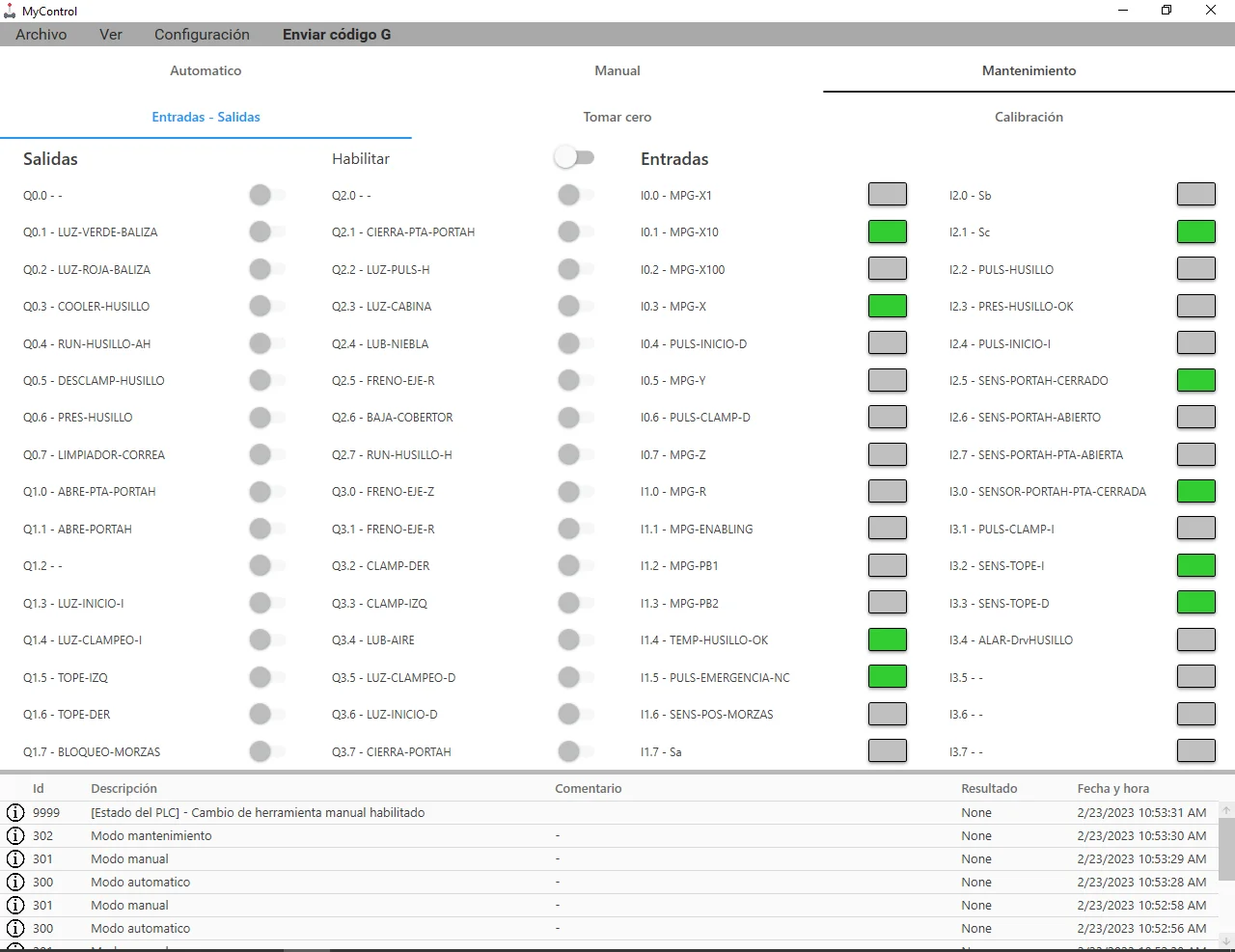

Inputs and outputs

We generate a window in which we can see the inputs and, with a power button, take control of the outputs; this is mainly used to test that everything works correctly.

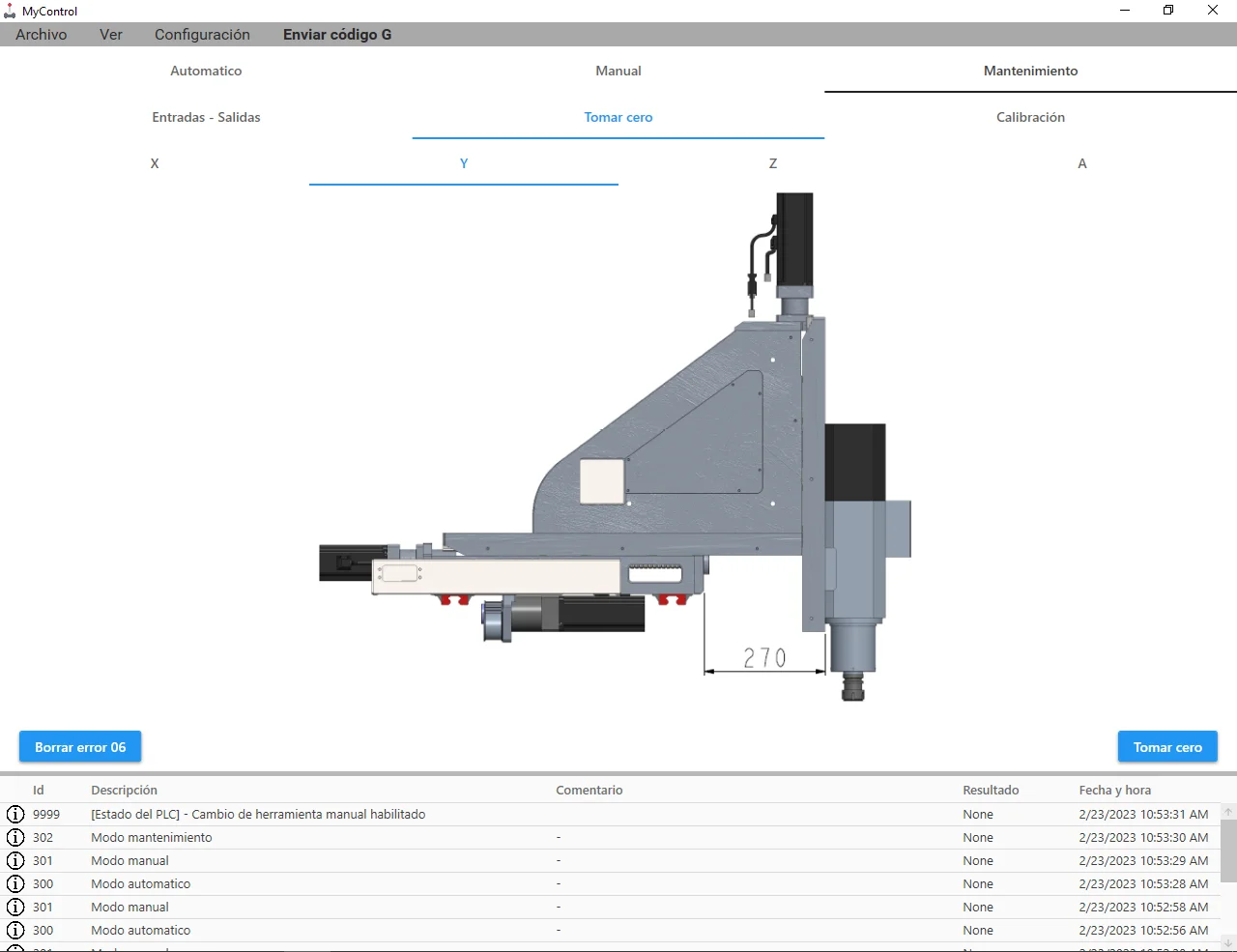

Take home

We make it easy to zero the axes with diagrams showing the positions corresponding to each axis. Simply move it to that position and press a button to complete the home position.

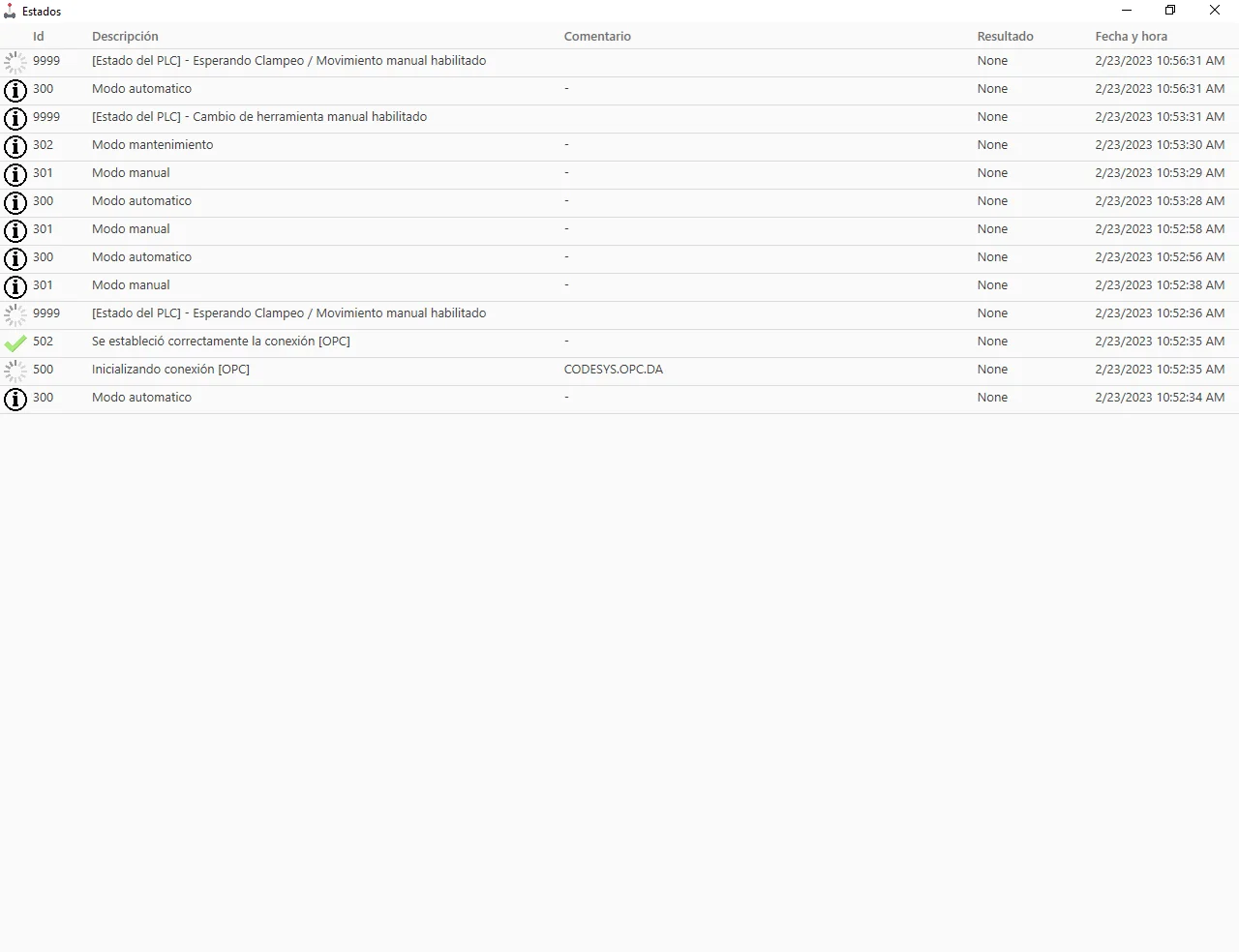

States

At the bottom of the program there is a status bar that shows the different states of the program or the PLC. We created a window to monitor every state the program has gone through since you started it, where errors can be read in greater detail.

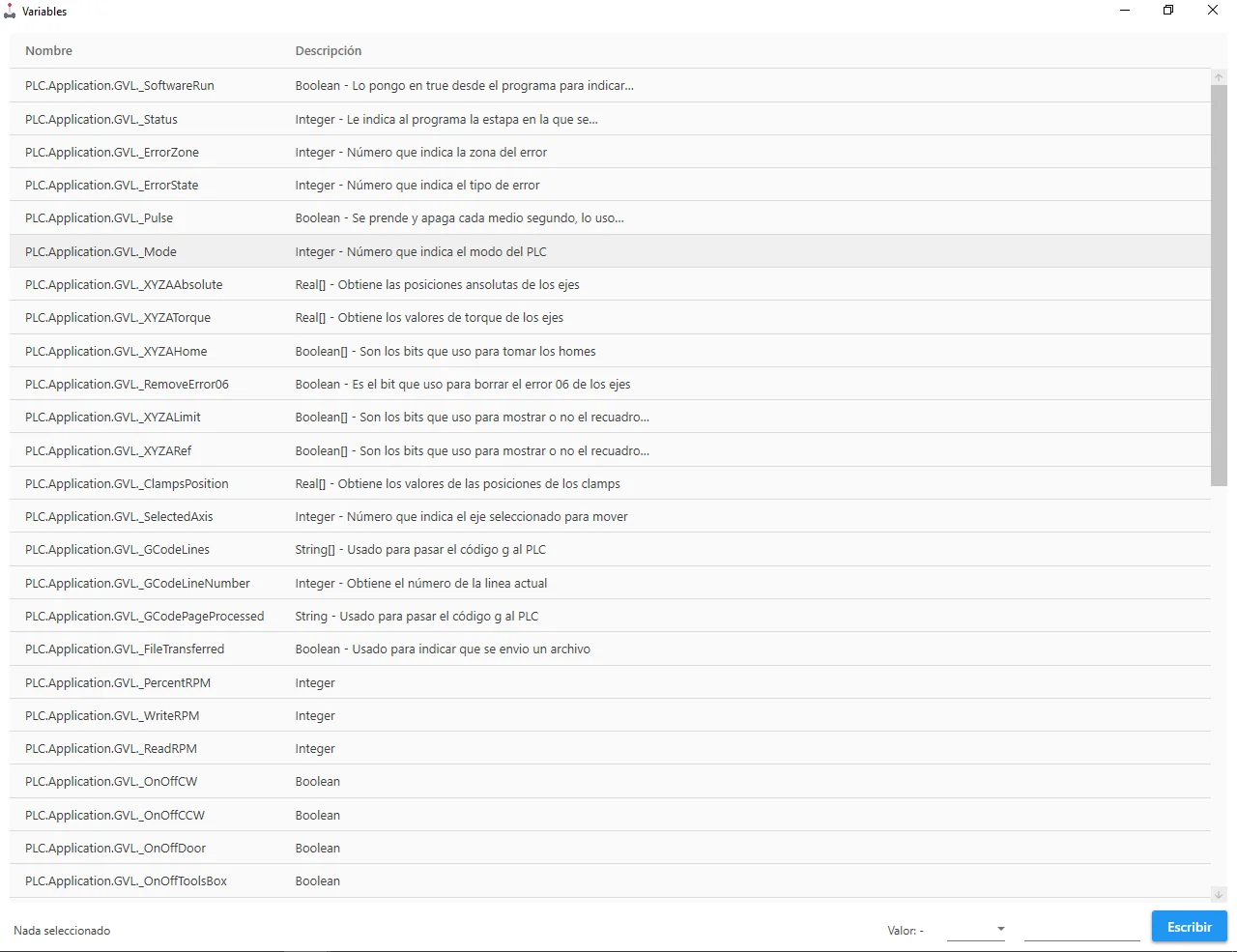

Variables

We generate a window in which all communication variables (OPC) can be monitored in real time, with the ability to write them and change their values.

Working method

Every machine and market is different. We adapt the software to your particular case. Want to know if it fits yours?

Ask us
